3D Facial Analysis Shows Biologic Basis for Gender-Affirming Surgery

Data-Driven Study Improves Guidance for Adult Craniofacial Surgery

By Melinda Krigel

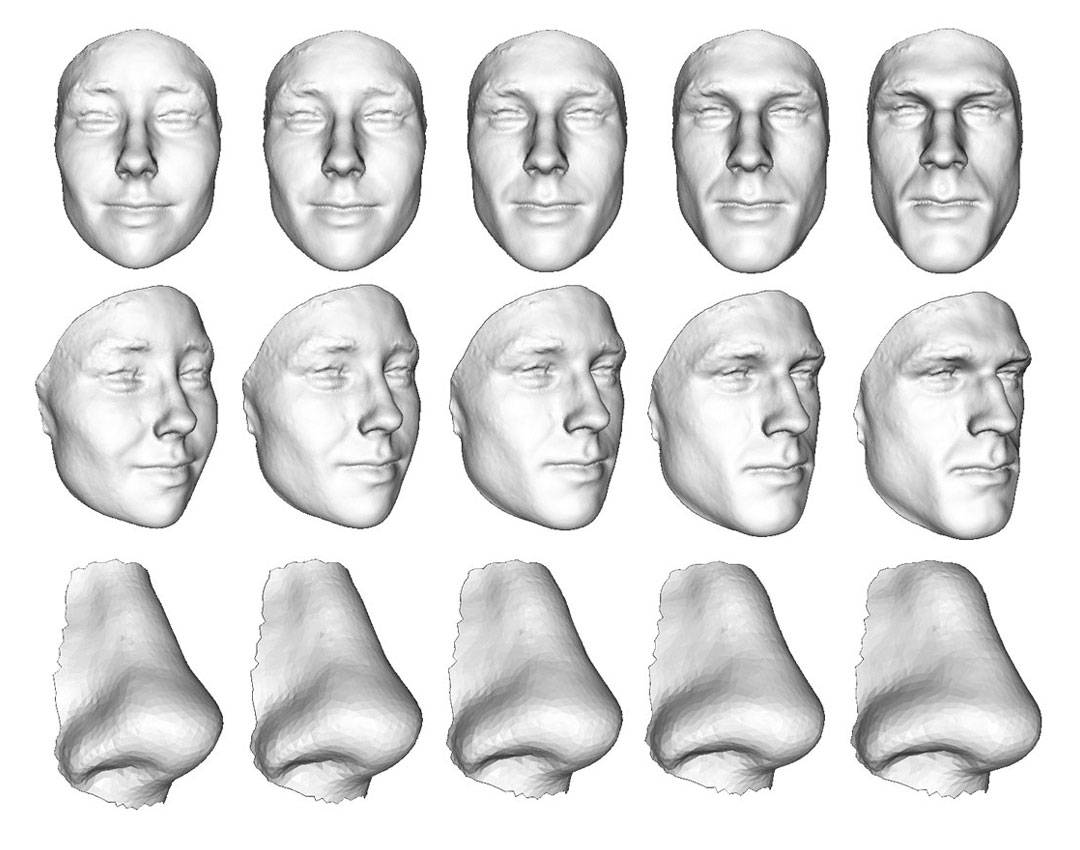

3D imaging of a subject in the center whose facial features have been transformed to be more masculine and feminine. 3D renderings on the left are of more feminine structures, and renderings to the right are masculine structures
An example subject (center column) that has been transformed to have a more masculine (right) and more feminine (left) shape, leaving overall size unchanged. The same shape transformation process applied to the nose region of the same subject. Image by Rahul Seth

Gender-affirming facial surgery (GFS) is pursued by transgender individuals who desire facial features that better reflect their gender identity. Until now, there have been few objective guidelines to justify and facilitate effective surgical decision-making for gender-affirming facial surgery.

In order to validate surgical decisions for GFS, researchers from the UC San Francisco and the University of Calgary set out to quantify the effect of sex on adult facial size and shape through an analysis of three-dimensional (3D) facial surface images.

In a study published online this week in Facial Plastic Surgery & Aesthetic Medicine, the investigators undertook a surgically oriented analysis of 3D facial size and shape to quantify and visualize facial sex differences. Their findings reveal significant differences in both shape and size of male and female craniofacial features and provide data-driven anatomic guidance and justification for GFS, particularly for forehead contouring cranioplasty, mandible and chin alterations, rhinoplasty, and cheek modifications.

“Our purpose was to establish an important, definitive, and biologically-based relationship of facial features to sex. This empowers the patient to navigate towards a facial appearance that matches with their gender identity, and thereby reduces mis-gendering and gender dysphoria while improving self-perception,” said senior author Rahul Seth, MD, Associate Professor in the Facial Plastic and Aesthetic Surgery in the UCSF Department of Otolaryngology-Head and Neck Surgery. “We feel that this data provides surgeons, patients, and insurance payors with a life-like and surgically-oriented analysis of 3D facial size and shape to guide patients and surgeons in performing these complex and life-altering surgeries.”

This empowers the patient to navigate towards a facial appearance that matches with their gender identity, and thereby reduces mis-gendering and gender dysphoria while improving self-perception.

Rahul Seth, MD
Portrait of Rahul Seth



Brow, Jaw, Nose, Cheek Show Biggest Differences by Sex

The researchers were able to determine that, on average, male faces are 7.3% larger than female faces. Sex was associated with significant facial shape differences in the entire face as well as in each sub-region considered in the study. The facial regions in which sex has the largest effect on shape are the brow, jaw, nose, and cheek. The authors, therefore, provide supportive evidence and guidelines for the appropriate alterations of these facial areas for GFS, although each individual patient’s goals and face is unique.

To yield these results, the researchers obtained facial measurements by applying an atlas facial surface to 3D surface scans of 545 males and 1028 females older than 20 years of age. The differences between male and female faces were analyzed and visualized for a set of predefined surgically relevant facial regions.

3D renderings of a subject's facial landscape with areas on the forehead, brow, nose, cheeck, lips, chin, and jaw marked in red to visualize facial landmarks.
The facial regions and landmarks used in this study visualized on an example subject. Area regions: (A) forehead, (B) brow, (C) nose, (D) cheek, (E) lips, (F) chin, (G) jaw. Image by Rahul Seth



3D heatmap showing a subject's face in three different views: frontal, angled, and in profile. The average female facial shape is colored according to the difference between the average male and female facial shapes. A key on the right shows distance in millimeters, with blue being 3.00 milimieters, light blue 1.5 millimeters, green 10.0 millimeters, yellow -1.50 millimeters, and red -3.00 millimeters. On the facial map, the brow and bridge of nose are blue, cheeks are red, and rest of face is green.
The average female facial shape colored according to the difference between the average male and female facial shapes. Image by Rahul Seth

Each scan used a 3D surface mesh comprised of 3D vertices connected by triangles. The triangular meshes were used to digitally represent surface data. While the exact number per face differed slightly in the raw data, each mesh contained 27,903 vertices to provide consistent, high-resolution facial data. Concepts central to rigorous geometric morphometrics were applied to the surface data to provide detailed results.

To analyze the effects of sex on facial size and shape, a variety of facial sub-regions were first specified based on the potential for surgical application and relevance to surgical decision making and planning. The regions included both large area sections of the face (cheeks, nose) as well as axial or sagittal curves. Dense surface-based measurements and comparisons of form, size, and shape were performed for the whole face and facial subregions.

The researchers represented their findings in a “heat map” to show the mean difference between male and female facial shape differences. Using this information, these changes were applied to an example face to demonstrate their validity to “surgically” alter the face along an axis of masculinity and femininity.

While the study provides important differentiators for male and female facial size and shape differences, the results also suggest that in some cases, effective gender modification may be achieved by over-correcting either size or shape. For example, if functional concerns prevent a surgeon from reducing jaw size, it may be most ideal to contour the area to be less square, emphasizing a more feminine shape.

The findings of this study provide anatomic rationale and guidance that may enable optimal GFS results for transgender and gender diverse individuals.
